Hub Controller
CCT-28-X
Price (incl. VAT)
€54.99
Category: Hub Controller
Need this product? Add to cart or download the manual.
Product Description

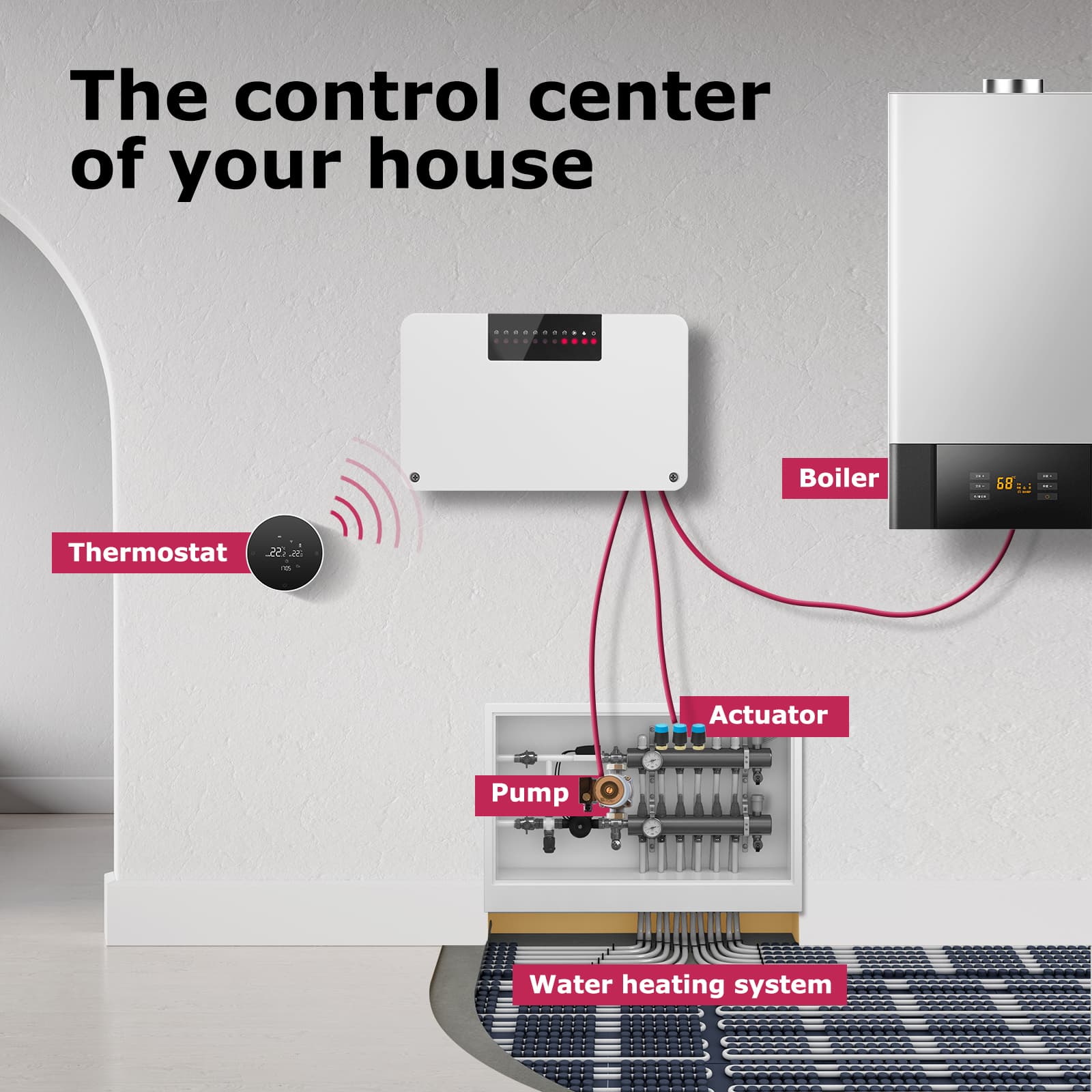

CCT-28-X Wireless Hub Controller is used in water underfloor heating systems. The manual states it can control zone valves or boiler thermostats and, as a central control unit, can control boiler and circulating pump. According to the user set temperature, it controls opening or closing boiler, circulating pump and electric actuators to achieve comfort and energy consumption saving.
Key Features
- Wireless central/Hub controller

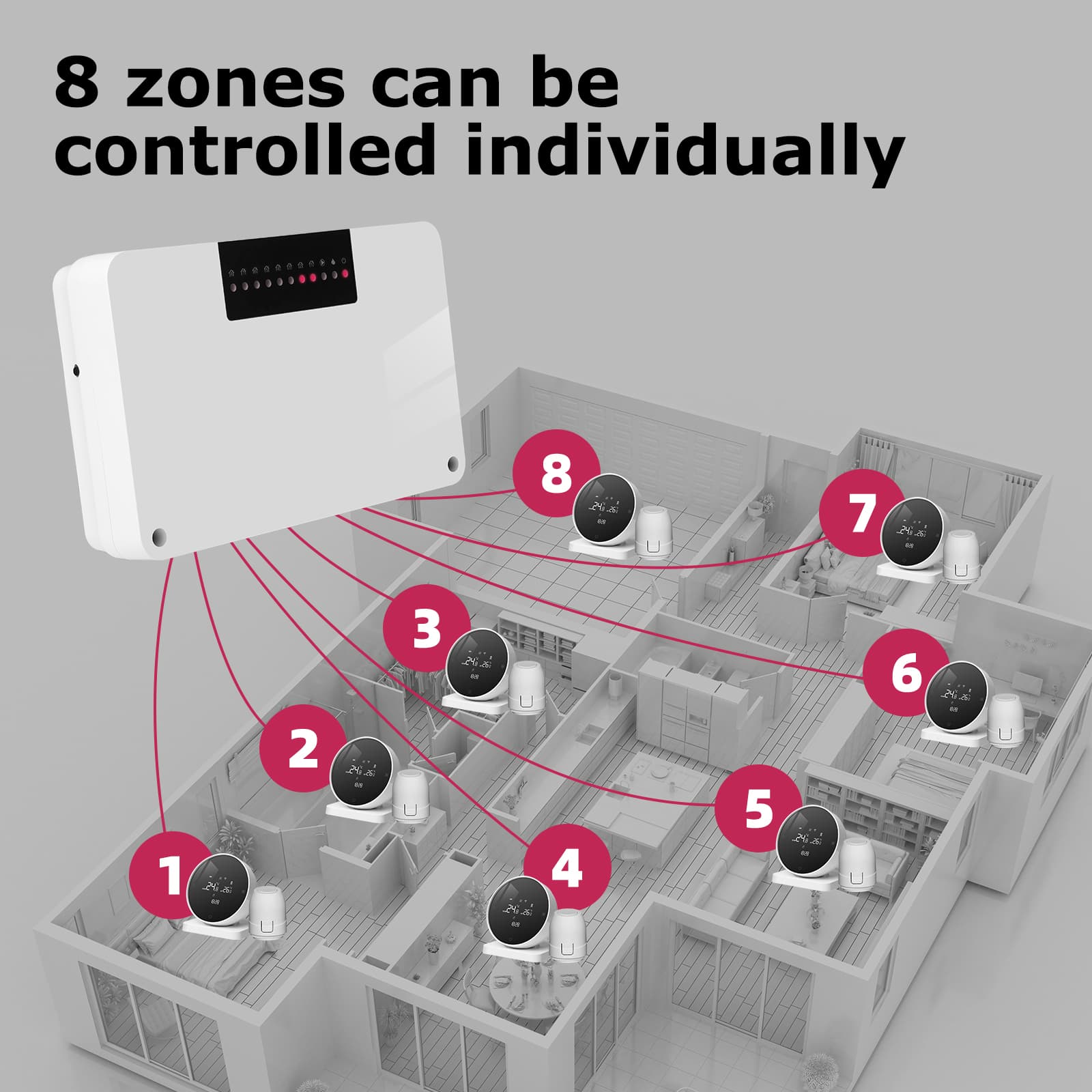

- 8 loops
- 433MHz

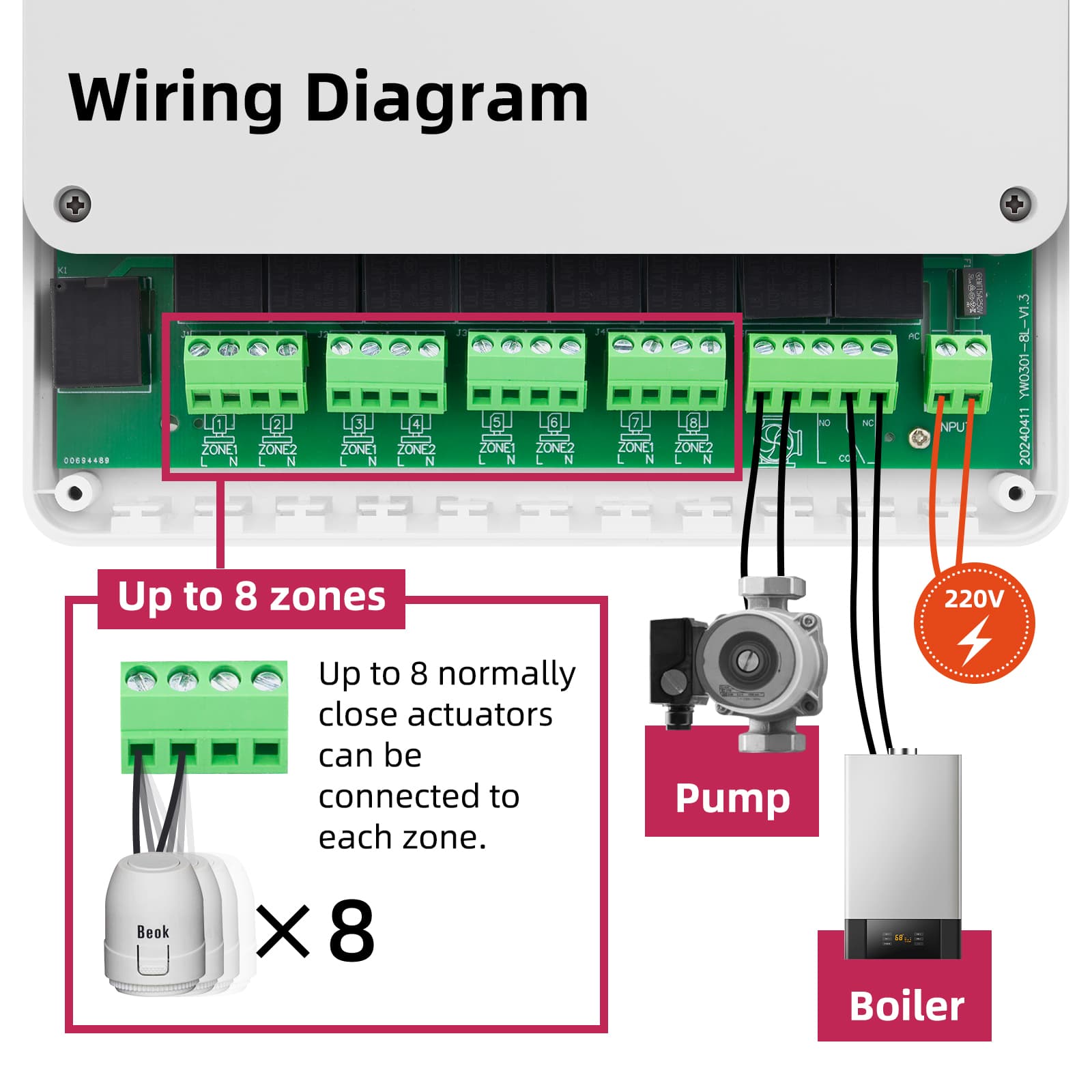

- central control for boiler, circulating pump, electric actuators and thermostats
- time delay function for boiler/pump protection

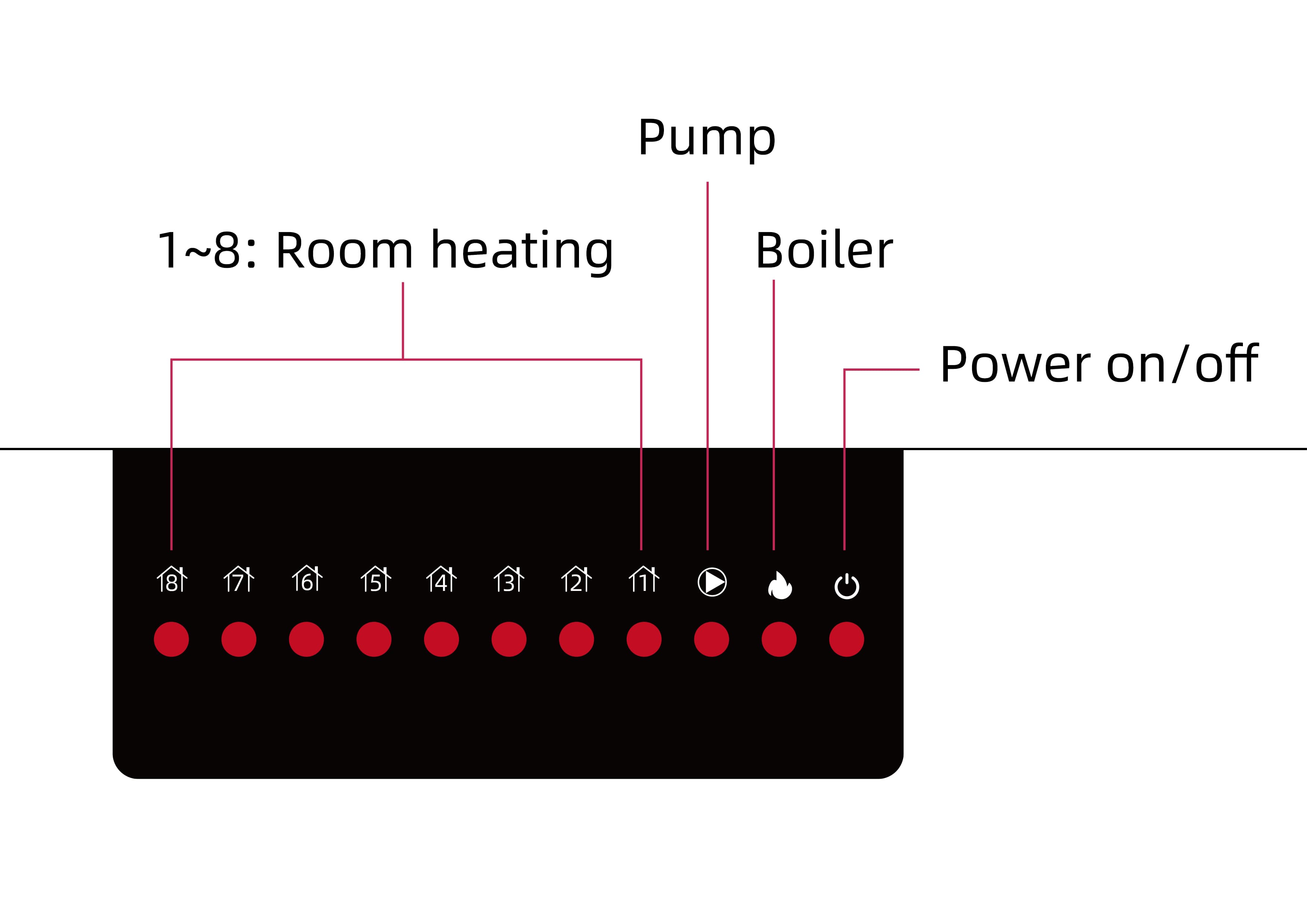

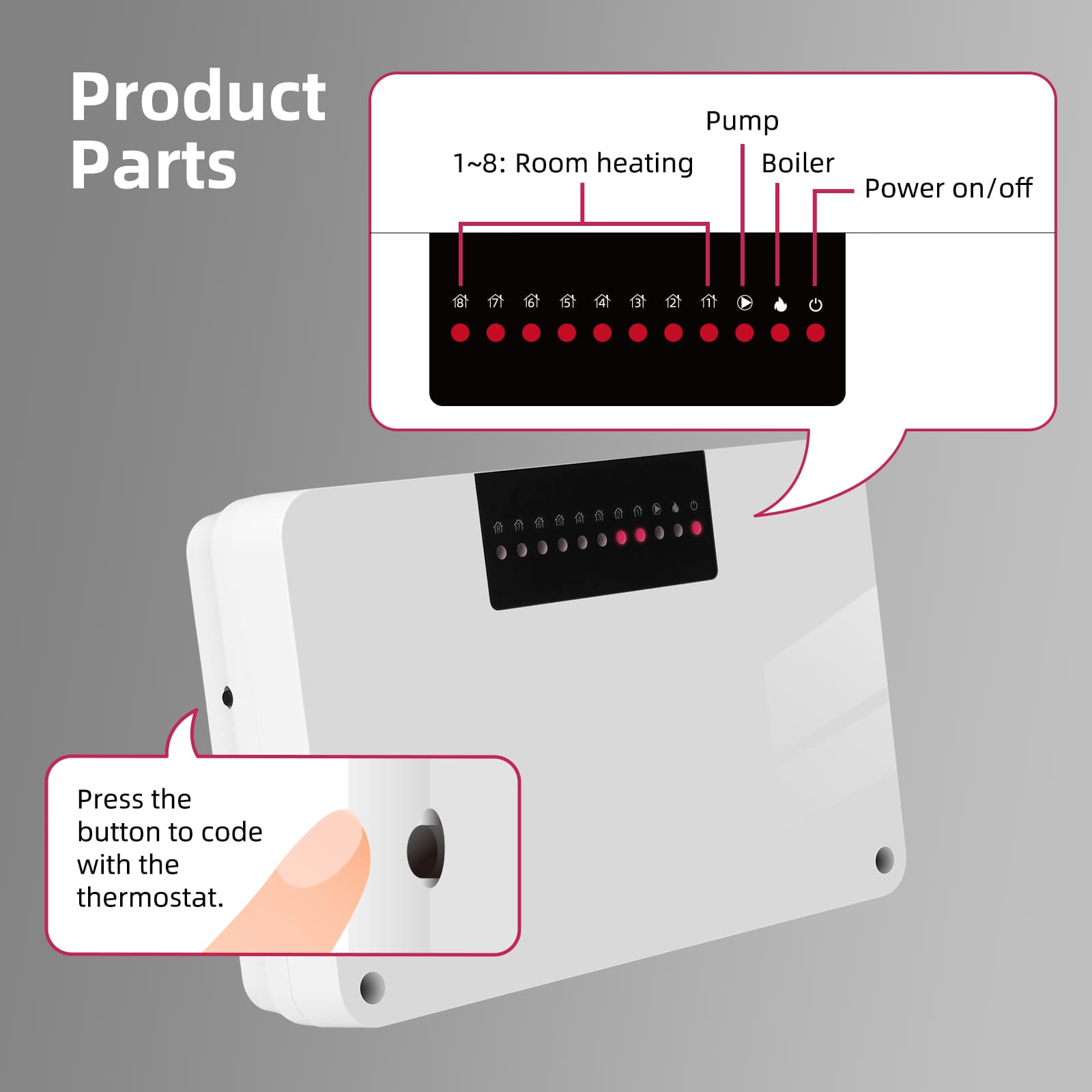

- thermostat indicator LEDs LED1-LED8
- pump indicator LED9
- boiler indicator LED10
- power indicator LED11.
Technical Data
- Power supply: 220VAC or 100-240VAC depending source
- current loading: max 20mA in manual, 10A on product page
- frequency: 433MHz

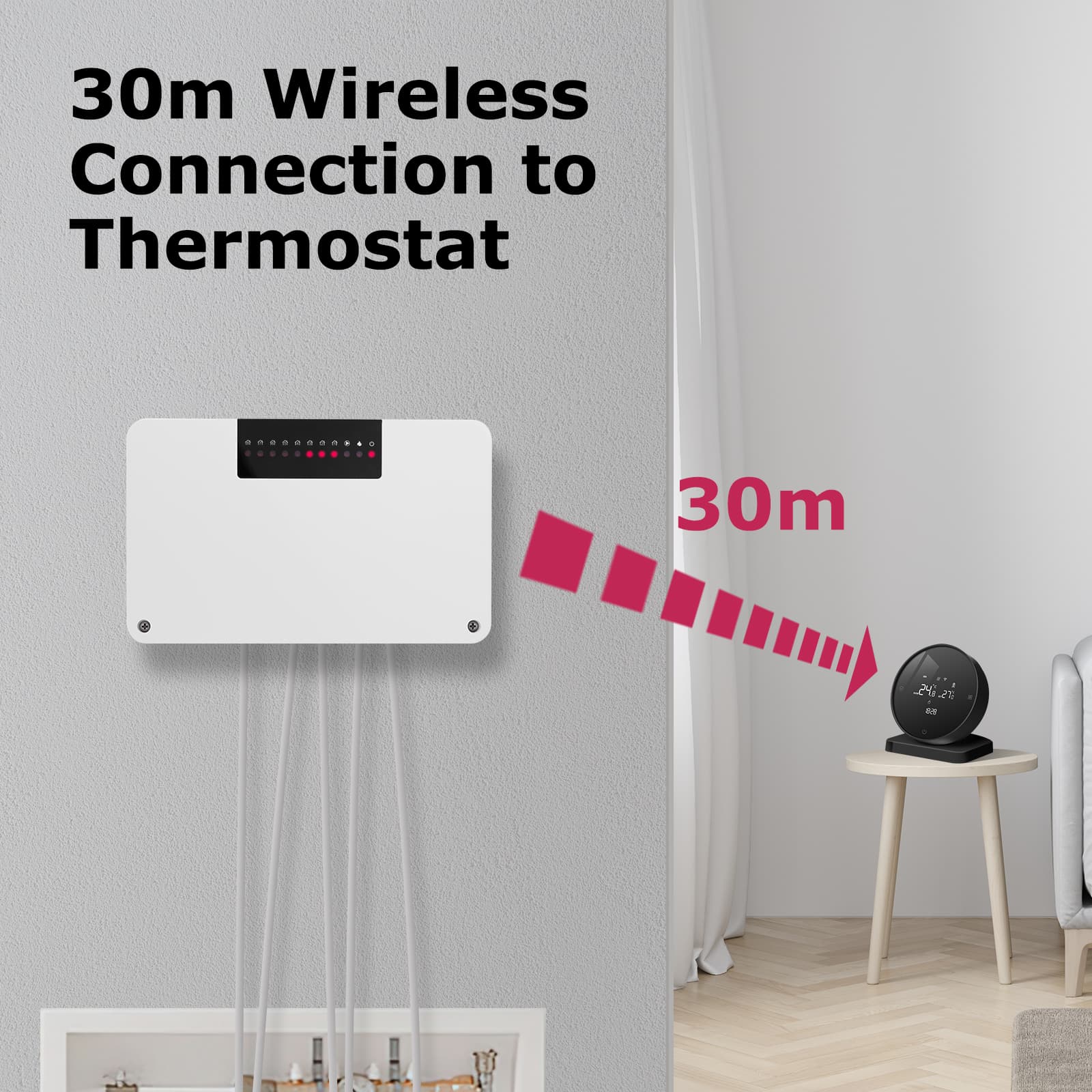

- wireless signal distance: 30m indoor, 200m outdoor
- pump output delay: 5 min in manual
- max power of pump: 1000W

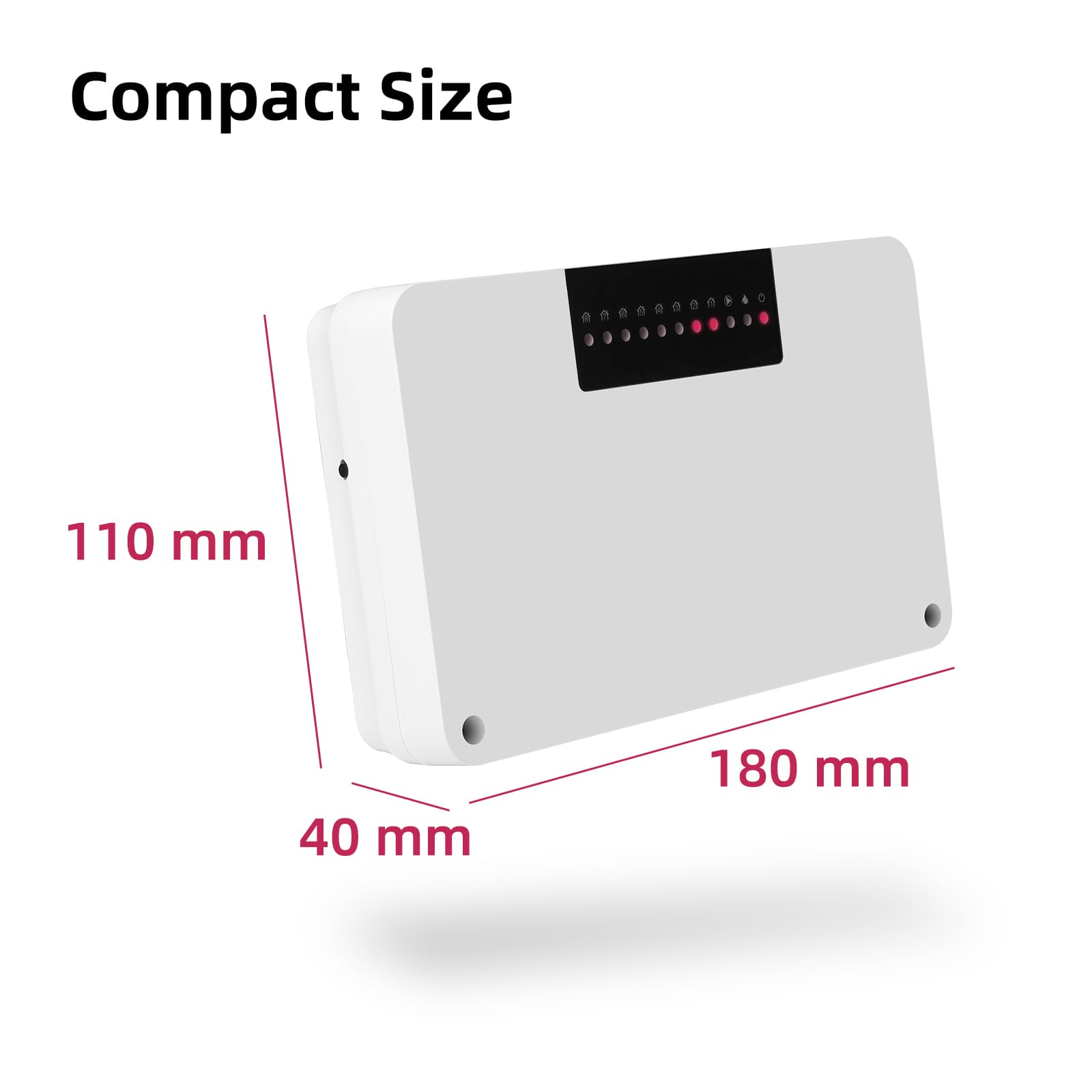

- dimensions: 180x110x40mm
- number of circuits: 8 loops.
